MABEL Yaesu DR-1X / DR-2X AllStar Repeater Interface

Purpose-built analog control and AllStar integration for Yaesu DR-1X and DR-2X repeater systems while preserving normal AUTO-AUTO operation.

MABEL bare PCB front — Bare PCB — component side

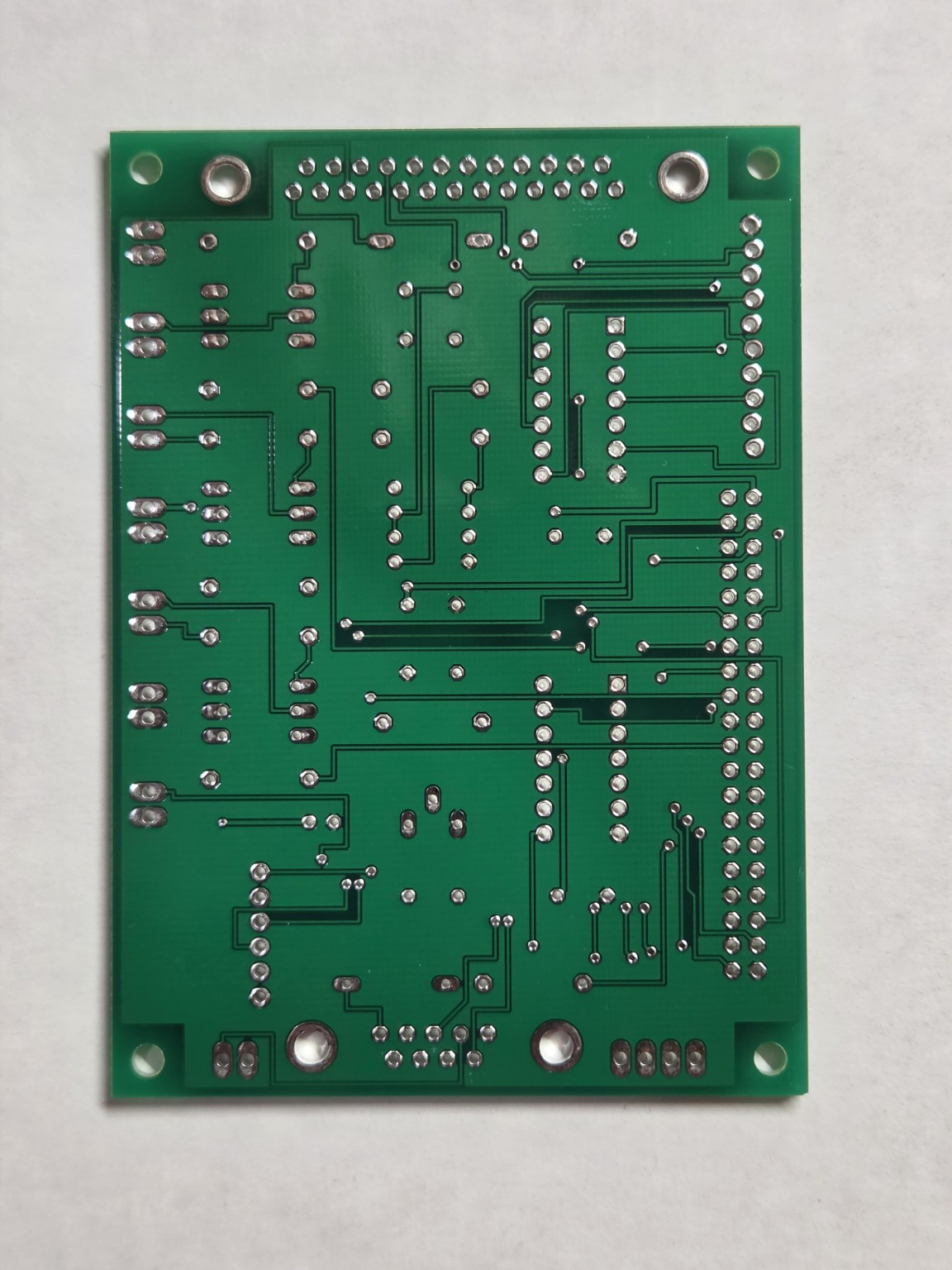

MABEL bare PCB rear — Bare PCB — solder side

Kit$45

Assembled$70

MABEL Kit — $45Kit version

MABEL Assembled — $70Ready-built board

Secure checkout will be handled by Stripe once the store connection is activated.

YAESU DR-1X / DR-2X / ALLSTAR

Protect AllStar operation from an already-active repeater.

MABEL was developed around a specific Yaesu repeater problem: if the repeater was already transmitting in another format and the AllStar side attempted to key it at the same time, the resulting mode conflict could cause the repeater to lock up. MABEL prevents that collision by checking the repeater's actual transmitted RF state before it allows the AllStar PTT request to key the transmitter.

The DR-1X/DR-2X can remain configured for AUTO-AUTO operation. MABEL intercepts the normal AllStar CTCSS and PTT control paths, watches the receive-side CTCSS condition and the AllStar PTT request, and then checks the RF Detector input before commanding the repeater into FM operation. If RF is already present, MABEL inhibits the AllStar keying request until the repeater is clear.

No internal repeater modification required: MABEL is designed to add AllStar or other compatible VoIP/RoIP control externally. The MABEL control method does not require cutting internal wires, cutting PCB traces, or modifying internal repeater circuitry. With the external RF Detector providing transmitter-state information, there is also no need to tap an internal transmitter-active line.

Why the RF Detector matters: it is part of the protection logic, not just an activity indicator. It gives MABEL an independent transmitter-active signal so MABEL can verify that the repeater is not already transmitting before it changes mode or allows AllStar to key. The external detector also avoids the need to splice into the repeater's internal transmitter-active wiring.

How MABEL manages the AllStar control path

Compatible SC-series CTCSS decoder output and the USB radio adapter PTT request are routed through MABEL instead of going directly to their normal destinations. MABEL then produces gated substitute CTCSS and PTT signals after its RF-state and mode checks are satisfied. AllStar continues doing its normal repeater-controller and linking work while MABEL handles the Yaesu mode-control interlock around it.

Primary application	Yaesu DR-1X / DR-2X AllStar repeater integration
Network use	AllStar / HamVOIP
Conflict protection	Checks actual transmitter RF before allowing AllStar keying
RF sensing	External Custom Communications RF Detector supported
Normal repeater mode	AUTO-AUTO operation retained
AllStar software	No special AllStar program modification required by the MABEL interlock method
Repeater modification	No internal RF-active tap required when the external RF Detector is used
Configuration	Kit or assembled

DR-1X and DR-2X wiring difference

DR-1X: jumper repeater pins 10 and 11; repeater pin 12 connects to MABEL X3-3.
DR-2X: jumper repeater pins 10 and 12; repeater pin 11 connects to MABEL X3-3.

When an SC-50 is used, do not ground MABEL X3-4. Ground X3-4 only when the installation is not using an SC-50.

Optional site-control capability

The MABEL design also provides a header for an optional eight-relay control module. That allows the Raspberry Pi to control auxiliary site equipment or low-voltage control circuits through GPIO-driven relay outputs. The documented relay arrangement also allows the relay coils to use a separate 5 V supply so their current does not have to be carried by the Raspberry Pi's 5 V rail.

Supporting hardware: A complete MABEL installation can use compatible RA-series USB radio adapter and SC-series squelch/CTCSS hardware as described in the MABEL documentation. These supporting boards are sold separately.
